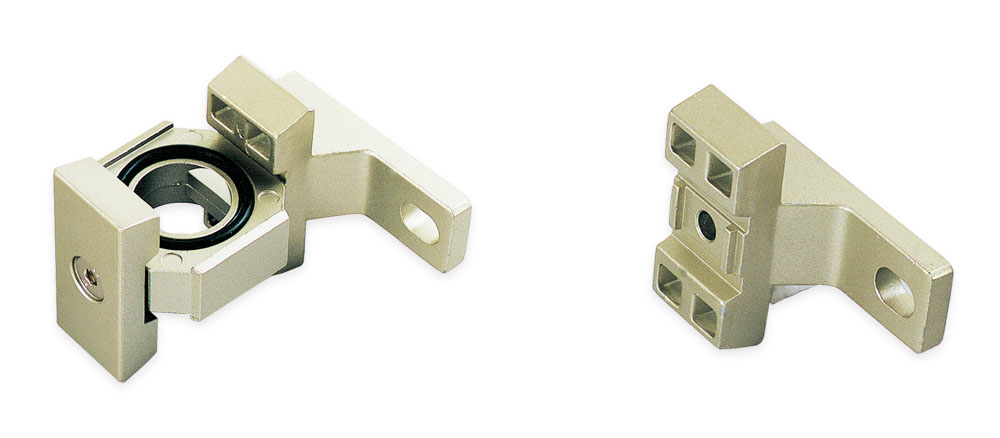

▌L形支架 带L形支架中间块
型号：
| L型支架 | 带L型支架中间块 | A | B | C | D | E | F | G | R | L | 使用型号 |
| B110L | Y10L | 20 | 12 | 4.5 | 3 | 25 | 5 | 8 | 2.25 | 27 | AC1000 |
| B210L | Y20L | 24 | 15 | 5.5 | 3 | 30 | 5 | 10 | 2.75 | 33 | AC2000 |
| B310L | Y30L | 35 | 16 | 7 | 4 | 41 | 7 | 11 | 3.5 | 45 | AC2500-3000 |
| B410L | Y40L | 40 | 22 | 9 | 4 | 41 | 7 | 14 | 4.5 | 50 | AC4000/HACE4000 |
| B510L | Y50L | 40 | 22 | 9 | 4 | 50 | 7 | 14 | 4.5 | 50 | AC4000-06/HACE4000-06 |
| B610L | Y60L | 50 | 23 | 12 | 4 | 69.8 | 10.5 | 15 | 6 | 63 | AC5000/HACE5000 |
| B210LE | Y20LE | 24 | 15 | 5.5 | 3 | 30 | 5 | 10 | 2.75 | 33 | HACE2000 |
| B310LE | Y30LE | 35 | 16 | 7 | 4 | 41 | 7 | 11 | 3.5 | 45 | HACE3000 |

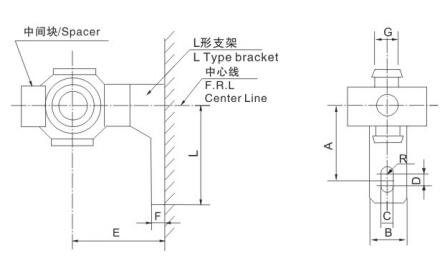

外形尺寸图：
订购码
▌L形支架 带L形支架中间块
型号：
| L型支架 | 带L型支架中间块 | A | B | C | D | E | F | G | R | L | 使用型号 |
| B110L | Y10L | 20 | 12 | 4.5 | 3 | 25 | 5 | 8 | 2.25 | 27 | AC1000 |
| B210L | Y20L | 24 | 15 | 5.5 | 3 | 30 | 5 | 10 | 2.75 | 33 | AC2000 |
| B310L | Y30L | 35 | 16 | 7 | 4 | 41 | 7 | 11 | 3.5 | 45 | AC2500-3000 |
| B410L | Y40L | 40 | 22 | 9 | 4 | 41 | 7 | 14 | 4.5 | 50 | AC4000/HACE4000 |
| B510L | Y50L | 40 | 22 | 9 | 4 | 50 | 7 | 14 | 4.5 | 50 | AC4000-06/HACE4000-06 |
| B610L | Y60L | 50 | 23 | 12 | 4 | 69.8 | 10.5 | 15 | 6 | 63 | AC5000/HACE5000 |
| B210LE | Y20LE | 24 | 15 | 5.5 | 3 | 30 | 5 | 10 | 2.75 | 33 | HACE2000 |
| B310LE | Y30LE | 35 | 16 | 7 | 4 | 41 | 7 | 11 | 3.5 | 45 | HACE3000 |
外形尺寸图：
订购码
