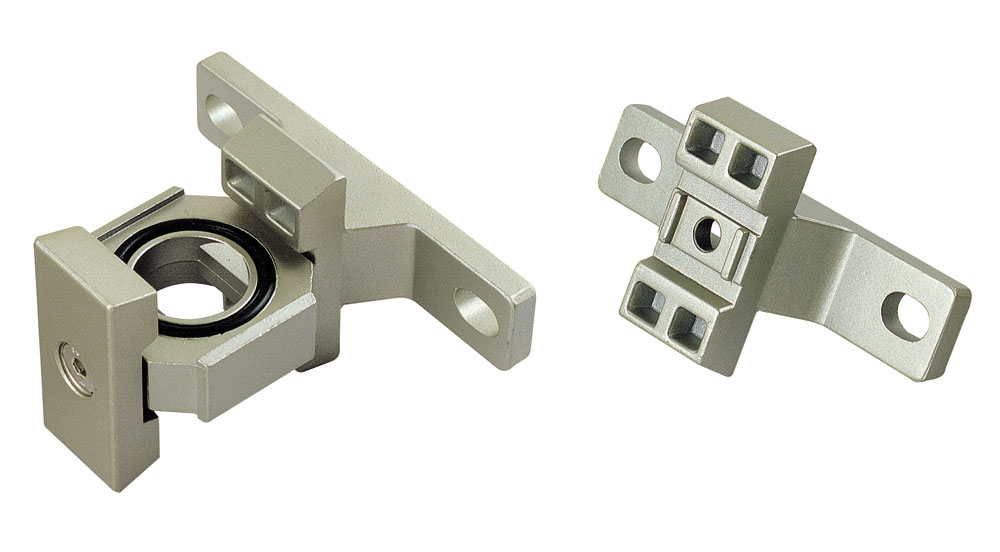

▌T形支架 带T形支架中间块
型号：
| T型支架 | 带T型支架中间块 | A | B | C | D | E | F | G | R | L | 使用型号 |
| B110T | Y10T | 20 | 12 | 4.5 | 3 | 25 | 5 | 8 | 2.25 | 27 | AC1010 |
| B210T | Y20T | 24 | 15 | 5.5 | 3 | 30 | 5 | 10 | 2.75 | 33 | AC2010 |
| B310T | Y30T | 35 | 16 | 7 | 4 | 41 | 7 | 11 | 3.5 | 45 | AC3010 |
| B410T | Y40T | 40 | 22 | 9 | 4 | 50 | 7 | 14 | 4.5 | 50 | AC4010/HACE4010 |
| B510T | Y50T | 40 | 22 | 9 | 4 | 50 | 7 | 14 | 4.5 | 50 | AC4010-06/HACR4010-06 |
| B610T | Y60T | 50 | 23 | 12 | 4 | 69.8 | 10.5 | 15 | 6 | 63 | HCH5010/ACE5010 |
| B210TE | Y20TE | 24 | 15 | 5.5 | 3 | 30 | 5 | 10 | 2.47 | 33 | HACE3010 |
| B310TE | Y30TE | 35 | 16 | 7 | 4 | 41 | 7 | 11 | 3.5 | 45 | HACE1013 |

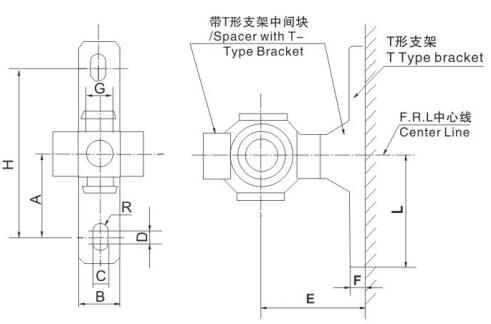

外形尺寸图：
订购码
▌T形支架 带T形支架中间块
型号：
| T型支架 | 带T型支架中间块 | A | B | C | D | E | F | G | R | L | 使用型号 |
| B110T | Y10T | 20 | 12 | 4.5 | 3 | 25 | 5 | 8 | 2.25 | 27 | AC1010 |
| B210T | Y20T | 24 | 15 | 5.5 | 3 | 30 | 5 | 10 | 2.75 | 33 | AC2010 |
| B310T | Y30T | 35 | 16 | 7 | 4 | 41 | 7 | 11 | 3.5 | 45 | AC3010 |
| B410T | Y40T | 40 | 22 | 9 | 4 | 50 | 7 | 14 | 4.5 | 50 | AC4010/HACE4010 |
| B510T | Y50T | 40 | 22 | 9 | 4 | 50 | 7 | 14 | 4.5 | 50 | AC4010-06/HACR4010-06 |
| B610T | Y60T | 50 | 23 | 12 | 4 | 69.8 | 10.5 | 15 | 6 | 63 | HCH5010/ACE5010 |
| B210TE | Y20TE | 24 | 15 | 5.5 | 3 | 30 | 5 | 10 | 2.47 | 33 | HACE3010 |
| B310TE | Y30TE | 35 | 16 | 7 | 4 | 41 | 7 | 11 | 3.5 | 45 | HACE1013 |
外形尺寸图：
订购码
